Sino Used Vehicles Export Center (SUVEC) One Stop Solution Provider for Used Vehicles Made in China
6 Years
| Ask Lasest Price | |
| Brand Name : | SINOTRUCK HOWO |
| Model Number : | ZZ3257N3847N1 |
| Certification : | ISO, CCC, CE |
| Price : | negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 100 units per month |
| Delivery Time : | 7 working days after full payment received |

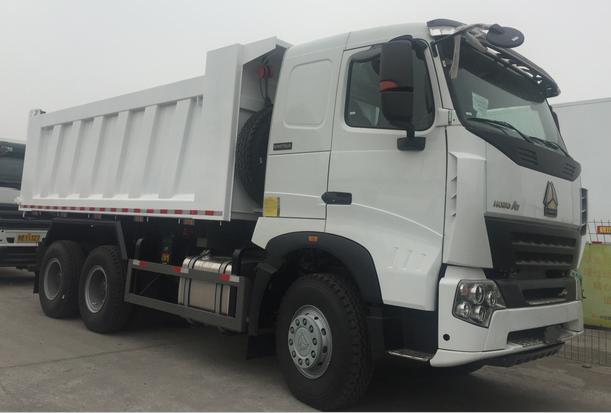

380HP 6x4 Drive Mode EURO II Emission Standard HOWO A7 Used Dump Truck
| Truck Model | ZZ3257N3847N1 | ||||
| Truck Brand | SINOTRUK—HOWO A7 | ||||
| Dimension(Lx W xH)(unloaded)(mm) | 8265*2496*3490 | ||||
| Driving Type | Left Hand Driving | ||||
| Cargo body size (L*W*H, mm) | 5800*2300*1500 bottom:8mm,side:6mm | ||||
| Lifting Type | Ventral side Lifting | ||||
| Approaching angle/Departure angle(°) | 20/26 | ||||
| Overhang(front/rear) (mm) | 1540/1650 | ||||
| Wheel base (mm) | 3825+1350 | ||||
| Curb weight(kg) | 12270 | ||||
| Persons in cab(persons) | 2 | ||||
| Gross vehicle weight(kg) | 25000 | ||||
| Max speed(km/h)(km/h) | 80 | ||||
Engine Model (Steyr technology, made in China) | D10.38-40, water-cooled,four strokes,6 cylinders in line with water cooling, directly injection | ||||
| Fuel type | Diesel | ||||
| Horse Power, max(kw/rpm) | 380HP | ||||
| Emission | EURO IV | ||||
| Fuel tanker capacity (L) | 300 | ||||
| Transmission Model | HW19710 10 forwards and 2 reverse | ||||
| Steering Model | 8118 Mechanical transmission with hydraulic assistance Steering gear re-circulating ball type. | ||||
| Clutch | single disc, dry type, diaphragm spring ;φ430 | ||||
| Service brake | Dual circuit compressed air brake | ||||
| Parking brake | spring energy, compressed air operating on rear wheels | ||||
| Auxiliary brake | The engine exhaust brake (EVB) | ||||
| Front axle | HF9 Disc Steering with double T-cross section beam | ||||
| Rear axle | AC16 Casting axle housing, central double reduction with differential locks between axles and wheels | ||||
| Color | White, Red, Yellow. according to the customer | ||||
| Tyre | 12.00R20 NO.10+1 Pieces | ||||
| Electrical system | Battery | 2X12V/180Ah | |||
| Alternator | 28V-1500kw | ||||
| Starter | 7.5Kw/24V | ||||
| Cab | A7-W standard cabin, two seats and one bed with air conditioner, all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers | ||||
We have a wide range of quality used trucks in our stock. One of the benefits of purchasing an used dump truck from us is the vehicle support provided to you in the event of any issue.
All used dump trucks for sale undergo rigid testing for any problems and comprehensive repairs are undertaken before the truck is listed for sale and we use only genuine original factory spare parts.
Regular Trade Terms:
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Payment terms: T/T before shipment.
Delivery time: normally 7-15 working days after full payment received.
Used Vehicles we can provide
Used Buses like yutong bus,coaster bus, coach bus,tour bus,mini bus,school bus etc.
Used trucks like dump trucks, sinotruck, cargo truck, tank truck, tractor trucks, crane truck, concrete mixer trucks and other special purpose trucks, etc.
also we have sources of used SUVs and pickup cars and Sourcing used vehicles based on your demands service is available.
|
|
