    230hp XCMG Used Crane Truck 16t Lifting Capacity With Excellent Lifting Performance

    Ask Lasest Price
    Brand Name : XCMG
    Model Number : QY16C
    Certification : ISO, CCC, CE
    Price : negotiable
    Payment Terms : T/T
    Supply Ability : 100 units per month
    Delivery Time : around 7 working days after full payment received
    • Product Details
    • Company Profile

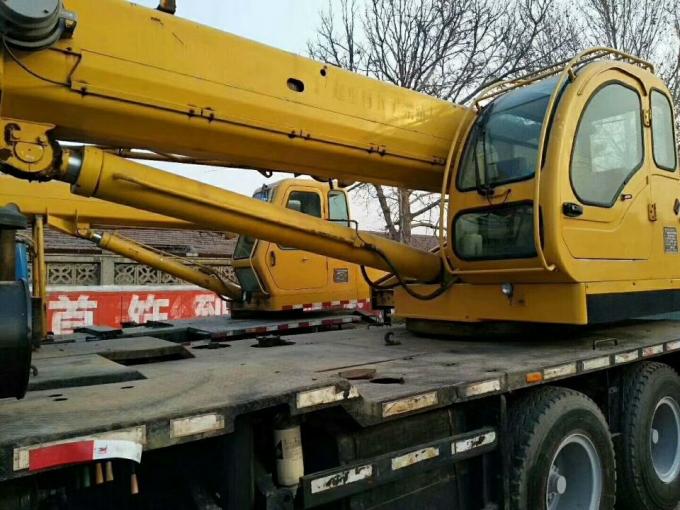

    230hp XCMG Used Crane Truck 16t Lifting Capacity With Excellent Lifting Performance

    16t Lifting Capacity 230hp Power XCMG Used Mobile Truck Crane Hoisting Machinery

    This truck crane jib system adopts embedded block, plug-in boom head and international advanced U section jib, which has excellent lifting performance and safe and reliable lifting work.
    The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.


    Truck Crane Specification
    Outline DimensionsOverall lengthmm11900
    Overall widthmm2500
    Overall heightmm3350
    Wheel basemm1420+2420+1800+1420+1505
    Trackmm2610/2610/2610/2315/2315/2610
    Front overhangmm2550
    Rear overhangmm2225
    Total vehicle mass in travel configurationkg54900
    Axle load1st Axlekg8000
    2nd Axlekg8000
    3rd Axlekg7900
    4th Axlekg12000
    5th Axlekg12000
    6th Axlekg7000
    PowerSuperstructure engineModel SC8DK230Q3TAD750VE
    Rated powerkW/(r/min)170/2200181/2300
    Rated torqueN.m/(r/min)854/14001050/1500
    Carrier engineModel QY100K
    Rated powerkW/(r/min)360/1800
    Rated torqueN.m/(r/min)2200/1300
    Travel PerformanceMax. travel speedkm/h80
    Min. travel speedkm/h0.5
    Min. turning diameterm24
    Min. turning diameter at boom tipm26.6
    Min. ground clearancemm270
    Approach angle°21
    Departure angle°21
    Braking distance (at 30 km/h )m≤10
    Max. grade ability%40
    Oil consumption per 100kmL70
    NoiseExterior noise level during acceleration travelingdB (A)≤88
    Noise level at seated positiondB (A)≤90
    Max. total rated lifting capacityt16
    Min. rated working radiusm3
    Turning radius at turntable tailAt counterweightmm4200
    At auxiliary winchmm4590
    Max. load momentBase boomkN.m3450
    Fully-extended boomkN.m1950
    Fully-extended boom+jibkN.m1230
    Outrigger spanLongitudinalm7.56
    Lateralm7.6
    Hoist heightBase boomm13.5
    Fully-extended boomm50.9
    Fully-extended boom +Jibm70.4
    Boom lengthBase boomm13.5
    Fully-extended boomm51
    Fully-extended boom +18.1m Jibm51+18.1
    Fully-extended boom +18.1m Jib+one 4m sectionm51+18.1+4
    Jib offset angle°0, 15, 30
    Elevating timeBoom raisings75
    Telescoping timeFully extended / retracteds160
    Max. swing speedr/min2
    Outrigger extending and retracting timeOutrigger beamExtending Simultaneouslys25
    Retracting Simultaneouslys15
    Outrigger jackExtending Simultaneouslys45
    Retracting Simultaneouslys25
    Hoist speed (single line, 4th layer)Main winchNo loadm/min105
    Auxiliary winchNo loadm/min104
    Exterior noise leveldB (A)≤118
    Noise level at seated positiondB (A)≤90

    We have a wide range of quality used trucks in our stock. One of the benefits of purchasing an used truck crane from us is the vehicle support provided to you in the event of any issue.

    All used truck crans for sale undergo rigid testing for any problems and comprehensive repairs are undertaken before the truck is listed for sale and we use only genuine original factory spare parts.

    Regular Trade Terms:

    Packing : Nude packing.

    Shipment: By RO-RO or Bulk vessel .

    Payment terms: T/T before shipment.

    Delivery time: normally 7 working days after full payment received.

    Used Vehicles we can provide

    Used Buses like yutong bus,coaster bus, coach bus,tour bus,mini bus,school bus etc.

    Used trucks like dump trucks, sinotruck, cargo truck, tank truck, tractor trucks, crane truck, concrete mixer trucks and other special purpose trucks, etc.

    also we have sources of used SUVs and pickup trucks and Sourcing used vehicles based on your demands service is available.
